Предлагаю Вашему вниманию несколько фото навесного оборудования двигателя 6G-74 и других GDI engines

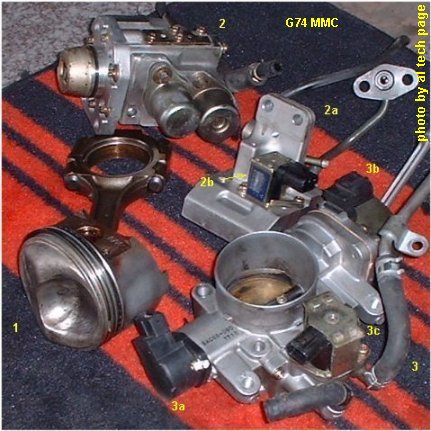

 2 - The Hight Pressure Pump (HPP)
 2a- "Device" for HPP (?)
 2b- ?
 3 - The Throttle Body
 3a- TPS
 3b- Throttle Actuator
 3c- Idle Valve (?)







The Elect. control EGR Valve

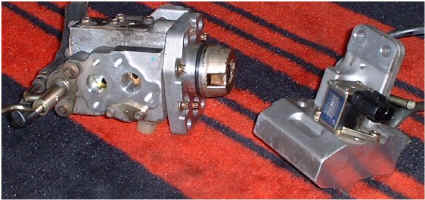

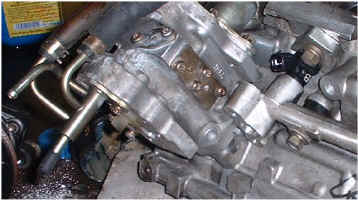

The Hight Pressure Pump (HPP)

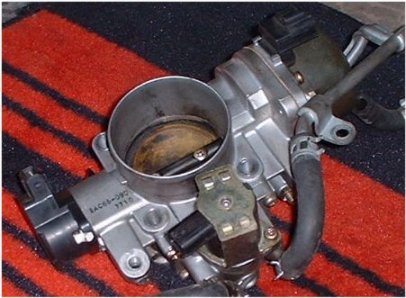

The Throttle Body

Injectors



The Throttle Body

High Pressure Injectors





The Injector

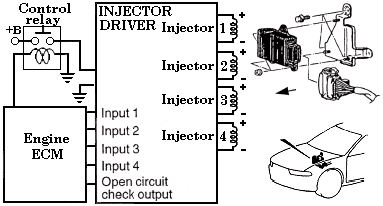

Injector Driver GDI 4G64 Injector Driver GDI 4G64

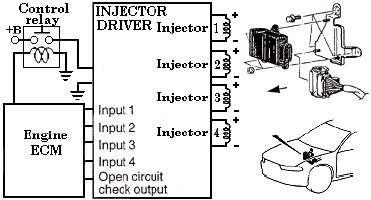

Injector Driver GDI Carisma

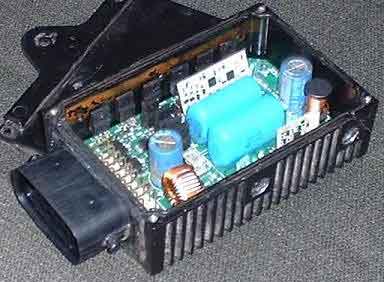

Injector Driver GDI Engines

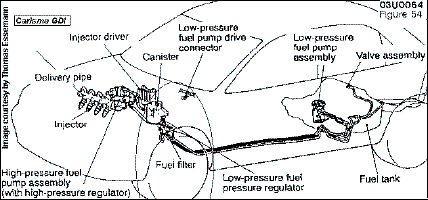

Расположение и конструкция топливного фильтра GDI Engines

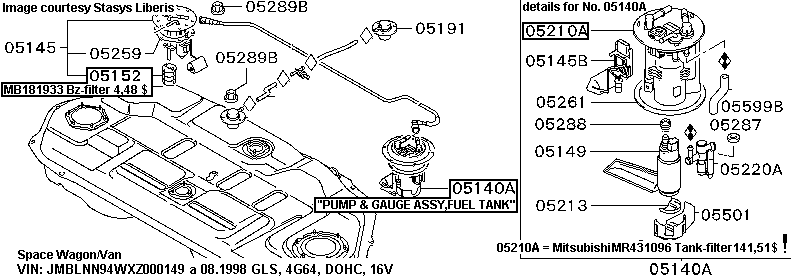

Fuel Filters in Spase Wagon (CAPS MMC)

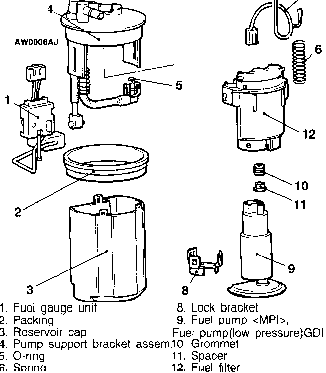

Fuel Filters GDI

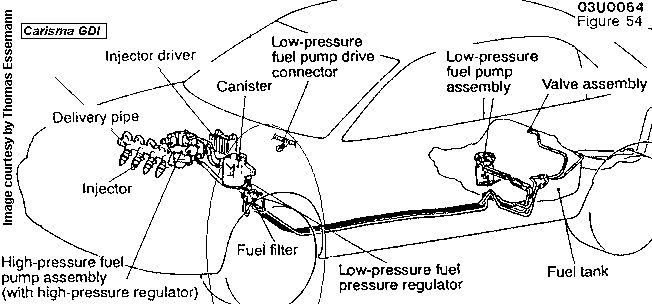

Location Fuel Filters in Carisma
